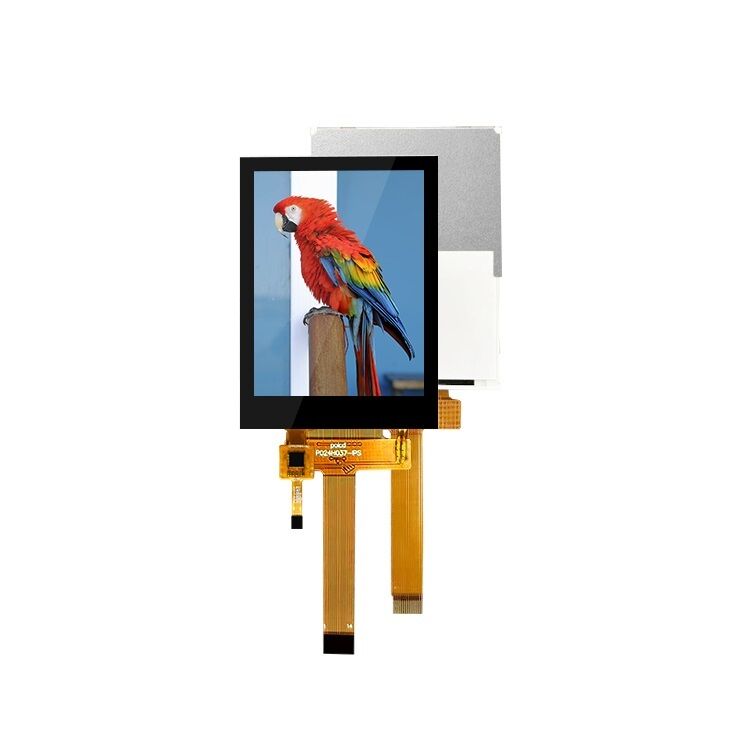

Polcd Custom 2.4 Inch IPS View Angle Capacitive Color Touch Screen 240x320 Resolution TFT LCD Module

Polcd Custom 2.4 Inch IPS View Angle Capacitive Color Touch Screen 240x320 Resolution TFT LCD Module

2.4 inch IPS TFT LCD module

capacitive color touch screen display

240x320 resolution TFT LCD

Luogo di origine:

Shenzen, Cina

Marca:

Polcd

Certificazione:

RoHS, ISO9001

Numero di modello:

P024H037-IPS-CTP

Contattici

Richieda una citazione
Dettagli del prodotto
Risoluzione:
240x320 a 2,4 pollici
Interfaccia:
4 filo sp
Driver Ic:
ST7789V
Luminosità (cd/m²):
pidocchio 300
Angolo di visione:
IPS tutti gli angoli di visione
Area di visualizzazione:
36.72 (h) x48.96 (v) mm
Rapporto di contrasto:
800:1
Termini di trasporto & di pagamento
Quantità di ordine minimo
1 pezzo
Prezzo
Please contact us for latest price
Imballaggi particolari
Dimensione di FCL: imballaggio di 40*30*20cm/campione: 20*18*13cm
Tempi di consegna
1-7 giorni lavorativi
Termini di pagamento
T/T, L/C, carta di credito, PayPal, D/A, D/P, Western Union, MoneyGram
Capacità di alimentazione
40.000 pezzi al giorno
Descrizione di prodotto

Parameter:

Model P024H037-IPS-CTP
Screen Size 2.4 inch
Number of Pixel 240RGB(H)x320(V)
Display area 36.72(H)x48.96(V)mm
Pixel pitch 0.153(H)x0.153(V)mm
Pins 14 Pins
Outline Dimension 42.72x60.26x3.05mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 800:1
Surface treatment --
Interface 4Line SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃


2.4 inch TFT displays are widely used in various products, including:


1. Handheld devices: 2.4 inch TFT displays are commonly used in handheld devices such as smartphones, mp3 players, and GPS devices. The displays provide clear and detailed images while remaining compact and lightweight.

2. Digital cameras: Many digital cameras use 2.4 inch TFT displays as their primary viewing screens. The displays allow users to view their photos and videos with high resolution and clarity.

3. Portable gaming consoles: 2.4 inch TFT displays are also commonly used in portable gaming consoles such as the Nintendo DS and PSP. The displays provide a vibrant and immersive gaming experience while remaining small and portable.

4. Medical devices: Medical devices such as glucose meters and blood pressure monitors use 2.4 inch TFT displays to display important health information to patients and healthcare professionals.

5. Industrial control systems: 2.4 inch TFT displays are used in various industrial control systems such as process control systems and machine interface applications. The displays provide real-time information and user interface control capabilities.

6. Automotive displays: Many automotive displays, such as infotainment systems and dashboard displays, use 2.4 inch TFT displays to provide drivers and passengers with important information and entertainment options.

2.4 inch TFT displays are versatile and widely used in various applications that require high-quality displays in a compact and lightweight form factor.

Polcd Custom 2.4 Inch IPS View Angle Capacitive Color Touch Screen 240x320 Resolution TFT LCD Module 0Polcd Custom 2.4 Inch IPS View Angle Capacitive Color Touch Screen 240x320 Resolution TFT LCD Module 1
